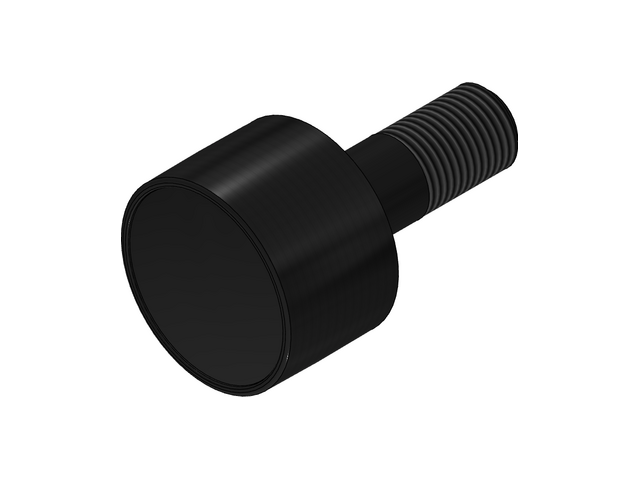

CPHR-A -Plain High Roller Crowned

2D Drawings

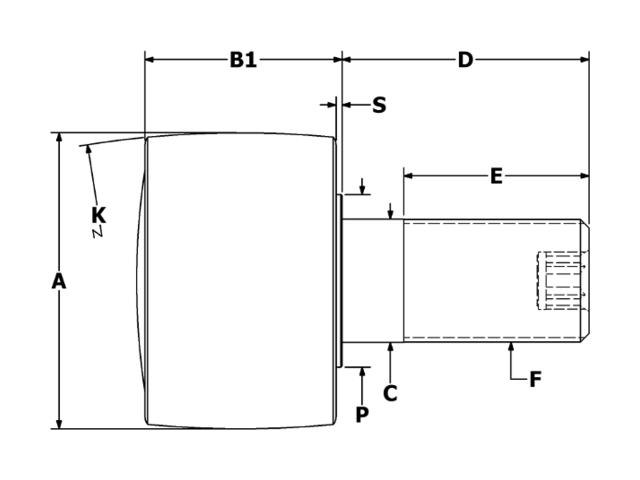

CPHR-150-A 2D CAD Drawing


Roller O.D. A 1.500
Crown K 20
Roller B1 1.187
Stud Diameter C 0.625
Stud Length D 1.500
M.E.T. E 3/4
Thread Class 2A F 5/8-18
Endplate Diameter P 0.750
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 2,760
Dynamic Thrust Load (lbf) 680
Max Static Capacity (lbf) 1,100
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
