VHRY-300-A

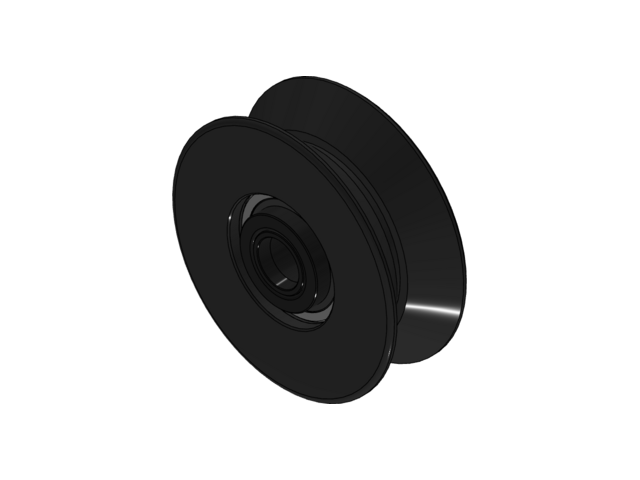

VHRY-A -Grooved Yoke High Roller

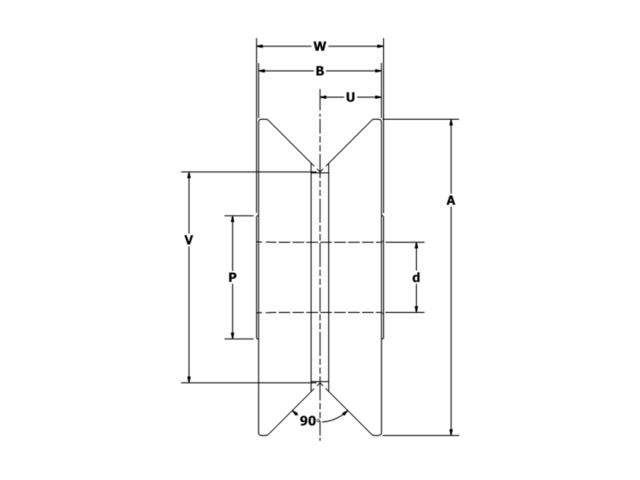

2D Drawings

VHRY-300-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID VHRY-300-A
Roller O.D. A 3.000
Roller Width B 1.250
V-Groove Diameter V 2.062
Bore Diameter d 0.625
Overall Width W 1.312
V-Groove Location U 0.656
Endplate Diameter P 1 1/8
Max Static Capacity (lbf) 1,810
Basic Dynamic Rating (lbf) 3,400
Thrust Capacity (lbf) 1,120
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
