VHR-650-A

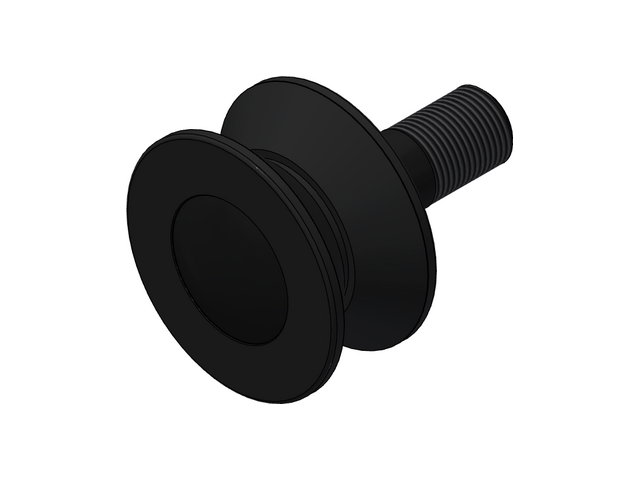

VHR-A -V-Groove High Roller

2D Drawings

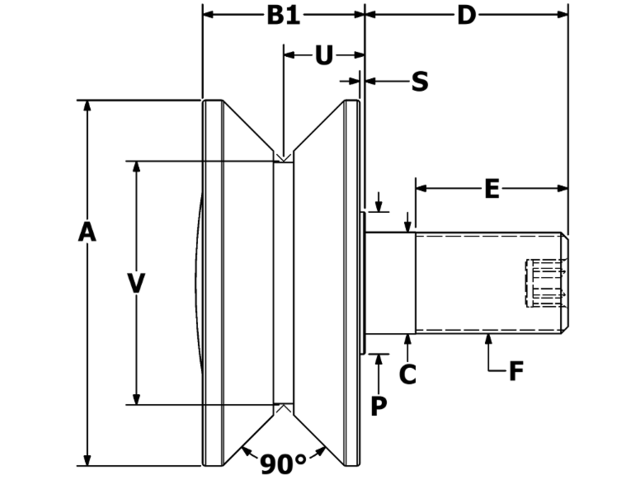

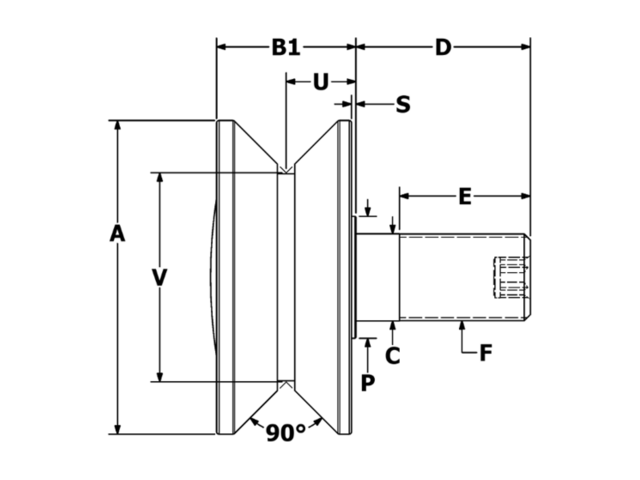

VHR-650-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID VHR-650-A
Roller O.D. A 6.500
V-Groove Diameter V 5.000
Roller Width B1 3.000
V-Groove Location U 1.500
Stud Diameter C 2.000
Stud Length D 4.500
M.E.T. E 2 1/2
Thread Class 2A F 2-12
Endplate Diameter P 3.250
Endplate Stickout S 0.062
Hex Size X 5/8
Basic Dynamic Rating (lbf) 35,840
Dynamic Thrust Load (lbf) 33,100
Max Static Capacity (lbf) 56,400
Torque (ft-lb) 50
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
