PHRE-225-A

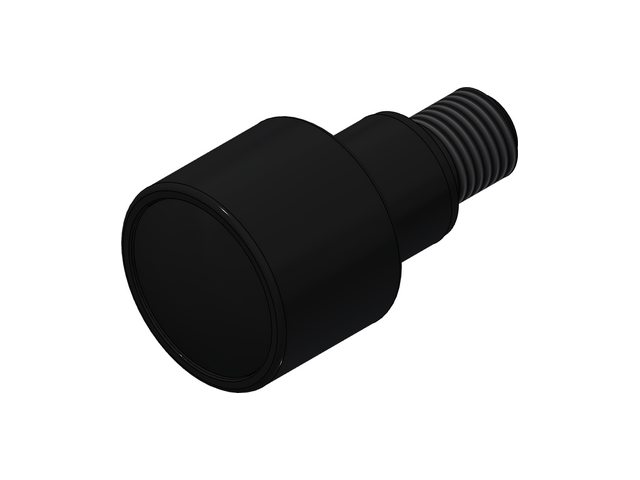

PHRE-A -Plain High Roller Eccentric

2D Drawings

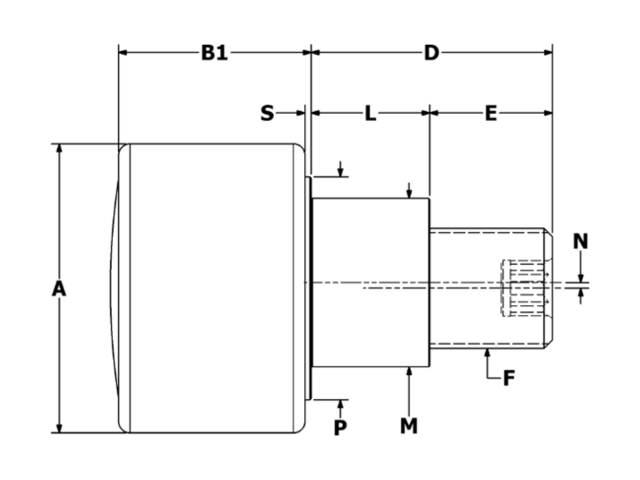

PHRE-225-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID PHRE-225-A
Roller O.D. A 2.250
Roller Width B1 1.687
Stud Length D 2.000
M.E.T. E 1.020
Thread Class 2A F 7/8-14
Bushing Length L 0.980
Bushing Diameter M 1.187
Eccentric Offset N 0.030
Endplate Diameter P 1.500
Endplate Stickout S 0.062
Hex Size X 5/16
Basic Dynamic Rating (lbf) 3,830
Dynamic Thrust Load (lbf) 1,000
Max Static Capacity (lbf) 1,620
Torque (ft-lb) 25
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
