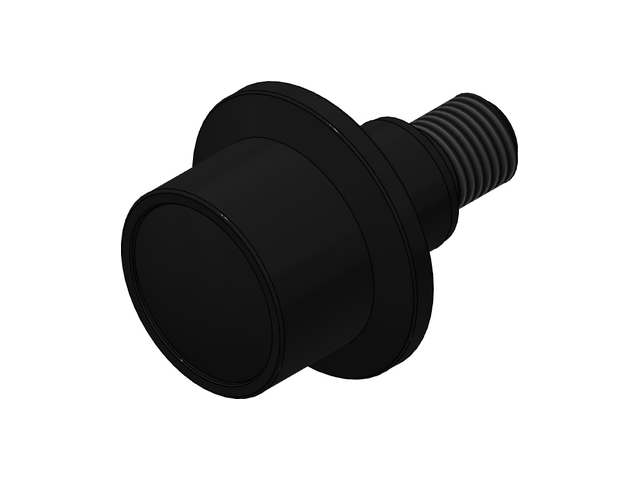

FHRE-A -Flanged High Roller Eccentric

2D Drawings

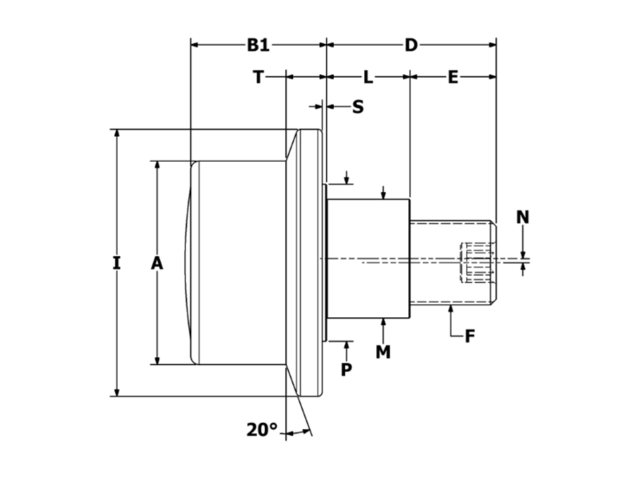

FHRE-600-A 2D CAD Drawing


Roller O.D. A 6.000
Flange I 6.938
Roller B1 3.000
Stud Length D 5.500
Thread Length E 2.625
Thread Class 2A F 2 1/2-12
Eccentric Sleeve Length L 2.875
Eccentric Sleeve Diameter M 3.125
Eccentric Offset N 0.060
Endplate Diameter P 3.625
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 35,840
Dynamic Thrust Load (lbf) 33,100
Max Static Capacity (lbf) 56,400
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
