FHRE-250-A

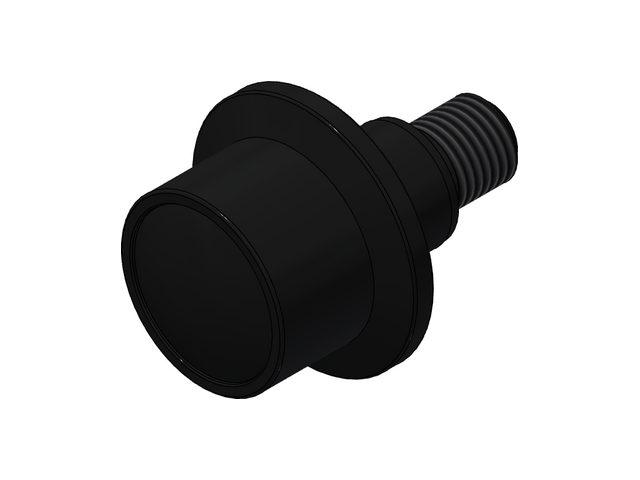

FHRE-A -Flanged High Roller Eccentric

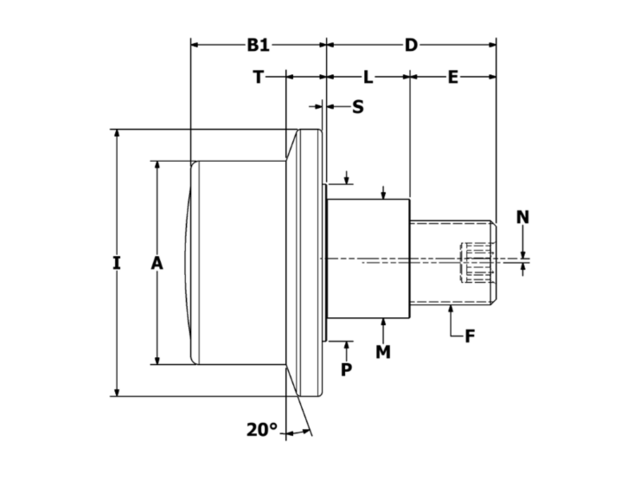

2D Drawings

FHRE-250-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID FHRE-250-A
Roller O.D. A 2.500
Flange Diameter I 3.188
Flange Width T 0.594
Roller Width B1 1.687
Stud Length D 2.250
M.E.T. E 1.145
Thread Class 2A F 1-14
Bushing Length L 1.105
Bushing Diameter M 1.375
Eccentric Offset N 0.030
Endplate Diameter P 1.687
Endplate Stickout S 0.062
Hex Size X 1/2
Basic Dynamic Rating (lbf) 5,190
Dynamic Thrust Load (lbf) 1,400
Max Static Capacity (lbf) 2,270
Torque (ft-lb) 25
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
