FHRE-137-A

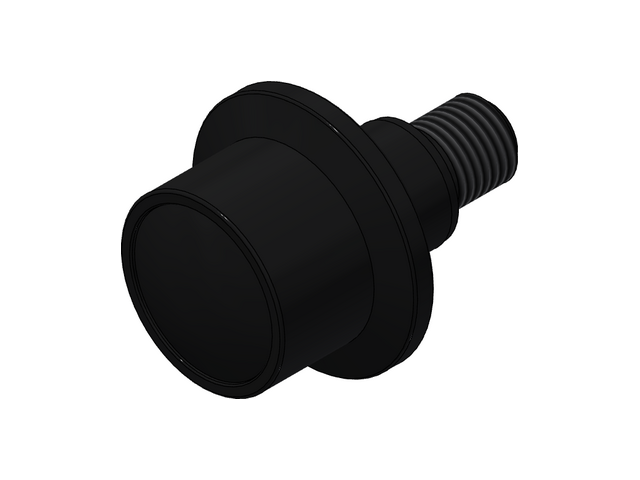

FHRE-A -Flanged High Roller Eccentric

2D Drawings

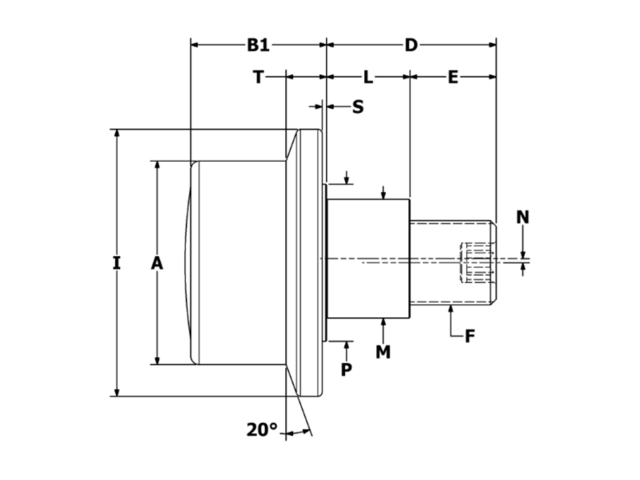

FHRE-137-A 2D CAD Drawing

Specifications

ID FHRE-137-A
Roller O.D. A 1.375
Flange I 1.688
Roller B1 0.844
Stud Length D 1.250
Thread Length E 0.625
Thread Class 2A F 1/2-20
Eccentric Sleeve Length L 0.625
Eccentric Sleeve Diameter M 0.687
Eccentric Offset N 0.030
Endplate Diameter P 0.812
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 1,350
Dynamic Thrust Load (lbf) 370
Max Static Capacity (lbf) 600
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
