CYNB-224-S

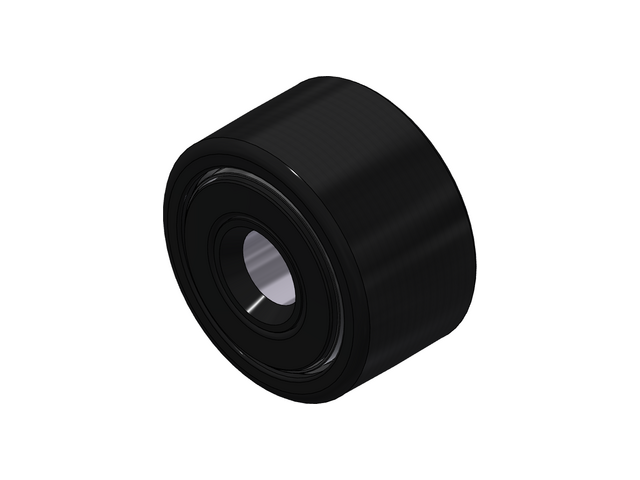

CYNB-S -Standard Crowned Sealed Yoke Roller

2D Drawings

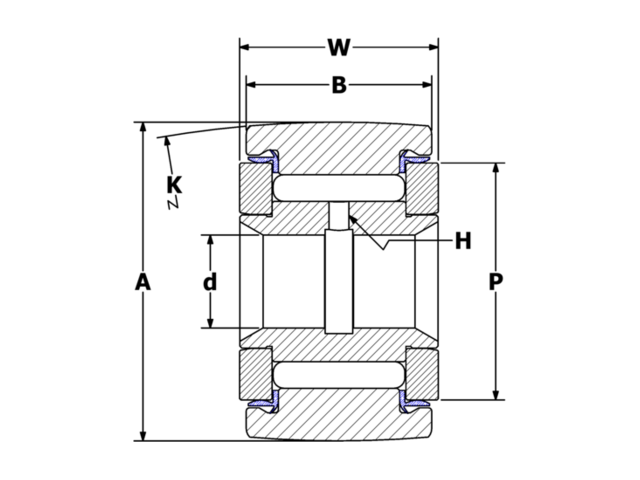

CYNB-224-S 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CYNB-224-S
Roller O.D. A 7.000
Roller Width B 3.750
Crown Radius K 60
Bore Diameter d 2.750
Overall Width W 3.8750
Oil Hole Diameter H 3/16
Min. Boss Diameter P 3 7/8
Shaft Diameter(Ø) Push Fit 2.7494
Shaft Diameter(Ø) Drive Fit 2.7502
Shaft Diameter(Ø) Press Fit 2.7506
Max Static Capacity (lbf) 213,860
Basic Dynamic Rating (lbf) 75,380
Limiting Speed (RPM) 400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
