CPHR-500-A

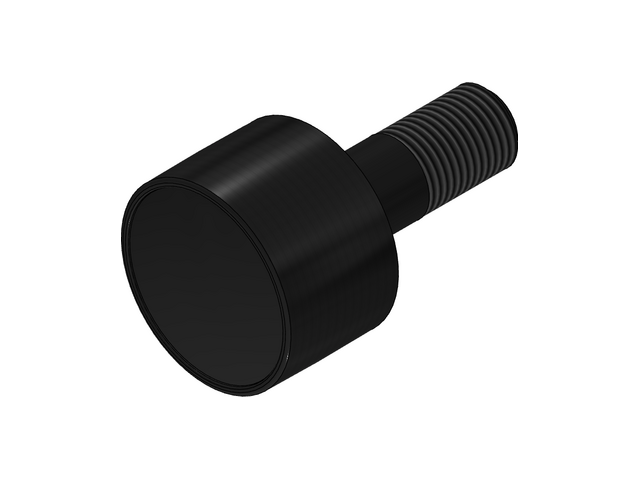

CPHR-A -Plain High Roller Crowned

2D Drawings

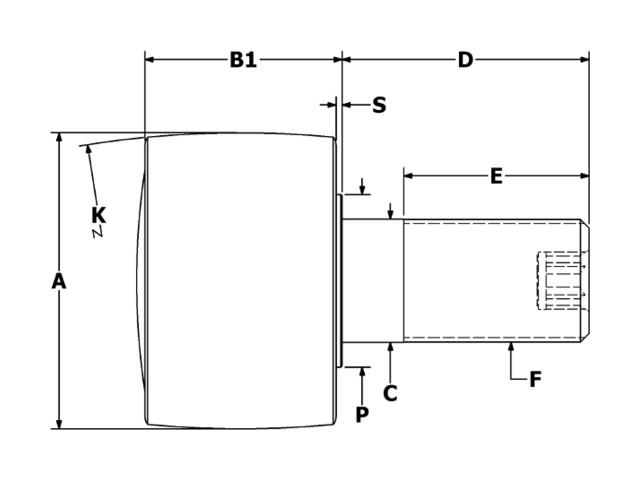

CPHR-500-A 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CPHR-500-A
Roller O.D. A 5.000
Crown Radius K 48
Roller Width B1 3.000
Stud Diameter C 2.000
Stud Length D 4.500
M.E.T. E 2 1/2
Thread Class 2A F 2-12
Endplate Diameter P 3.250
Endplate Stickout S 0.062
Hex Size X 3/4
Basic Dynamic Rating (lbf) 33,290
Dynamic Thrust Load (lbf) 32,500
Max Static Capacity (lbf) 51,900
Torque (ft-lb) 50
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
