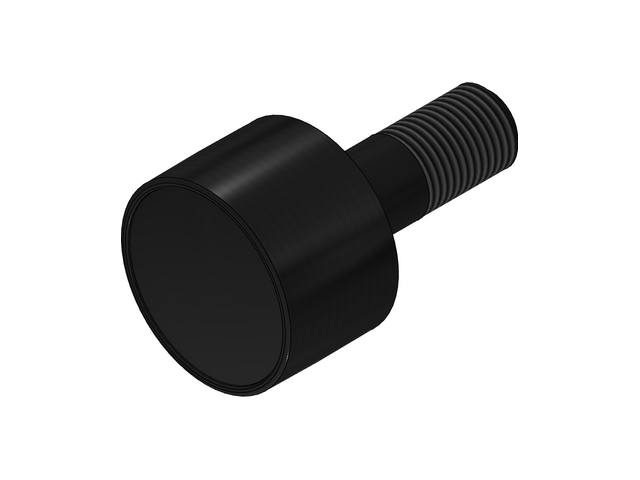

CPHR-A -Plain High Roller Crowned

2D Drawings

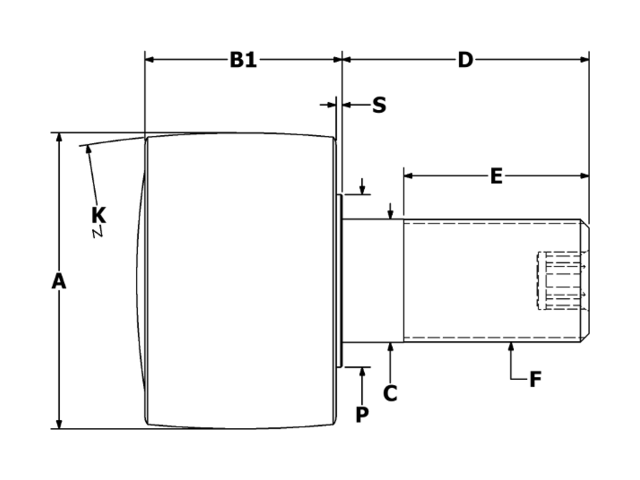

CPHR-450-A 2D CAD Drawing


Roller O.D. A 4.500
Crown K 30
Roller B1 2.000
Stud Diameter C 1.250
Stud Length D 2.750
M.E.T. E 1 3/4
Thread Class 2A F 1 1/4-12
Endplate Diameter P 1.750
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 14,270
Dynamic Thrust Load (lbf) 12,000
Max Static Capacity (lbf) 20,000
Ball(BB) or Tapered(TRB) Roller Bearing TRB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
