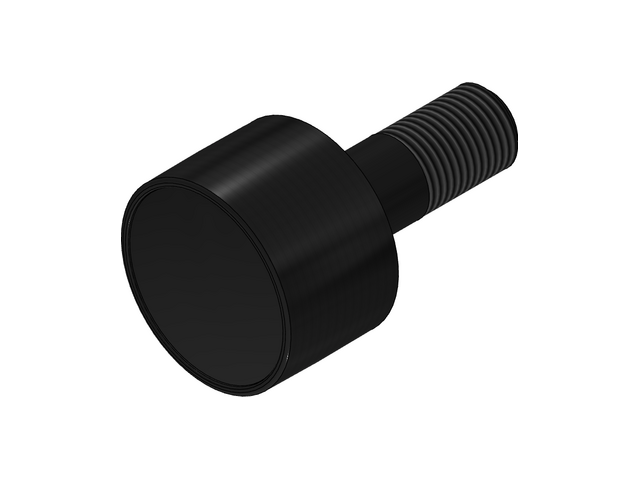

CPHR-A -Plain High Roller Crowned

2D Drawings

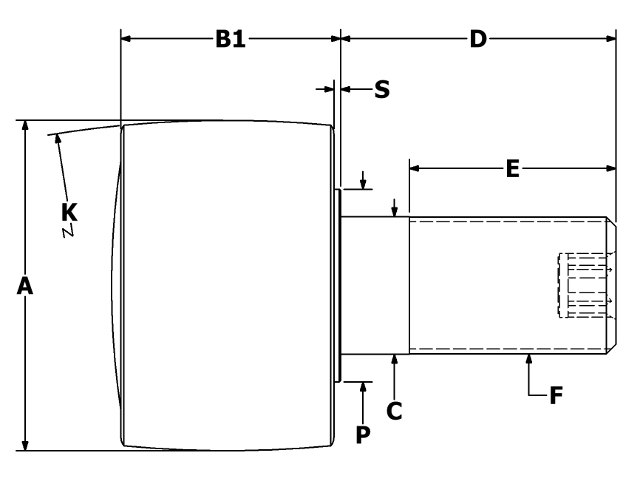

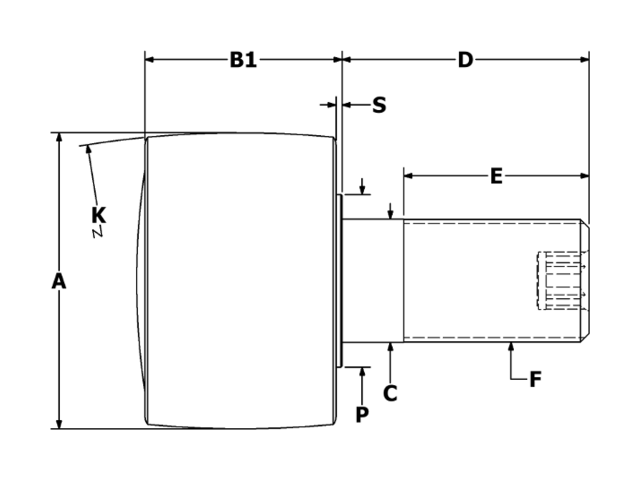

CPHR-200-A 2D CAD Drawing


Roller O.D. A 2.000
Crown K 24
Roller B1 1.687
Stud Diameter C 0.875
Stud Length D 2.000
M.E.T. E 1 1/8
Thread Class 2A F 7/8-14
Endplate Diameter P 1.000
Endplate Stickout S 0.062
Basic Dynamic Rating (lbf) 3,830
Dynamic Thrust Load (lbf) 1,000
Max Static Capacity (lbf) 1,620
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
