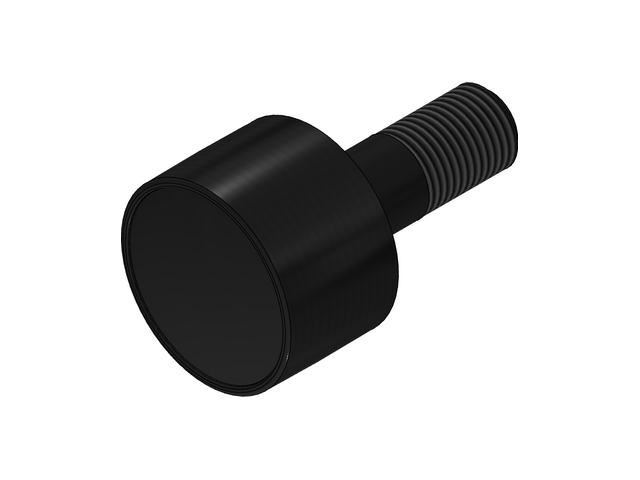

CPHR-A -Plain High Roller Crowned

2D Drawings

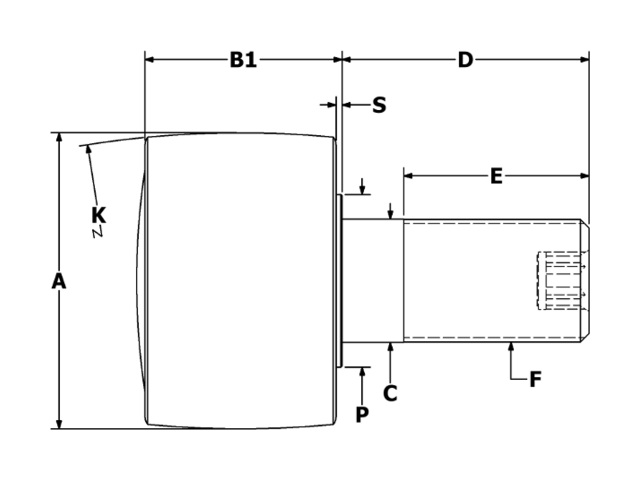

CPHR-137-A 2D CAD Drawing


Roller O.D. A 1.375
Crown K 14
Roller B1 0.844
Stud Diameter C 0.500
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 1/2-20
Endplate Diameter P 0.625
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 1,350
Dynamic Thrust Load (lbf) 370
Max Static Capacity (lbf) 600
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
