CPHR-A -Plain High Roller Crowned

2D Drawings

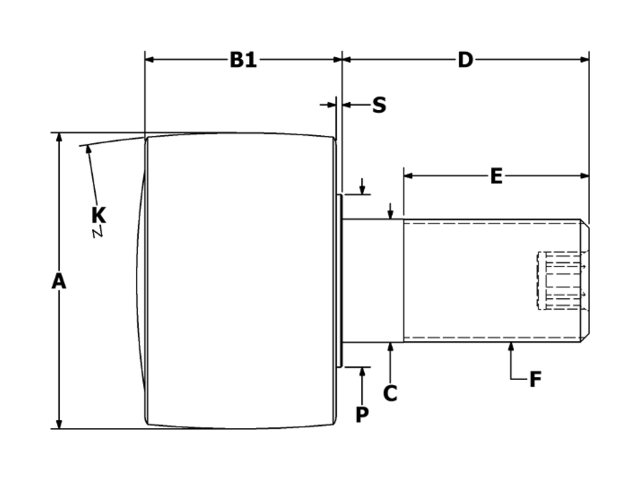

CPHR-100-A 2D CAD Drawing


Roller O.D. A 1.000
Crown K 12
Roller B1 0.781
Stud Diameter C 0.437
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Endplate Diameter P 0.500
Endplate Stickout S 0.031
Basic Dynamic Rating (lbf) 630
Dynamic Thrust Load (lbf) 140
Max Static Capacity (lbf) 230
Ball(BB) or Tapered(TRB) Roller Bearing BB

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
