CNYR-44

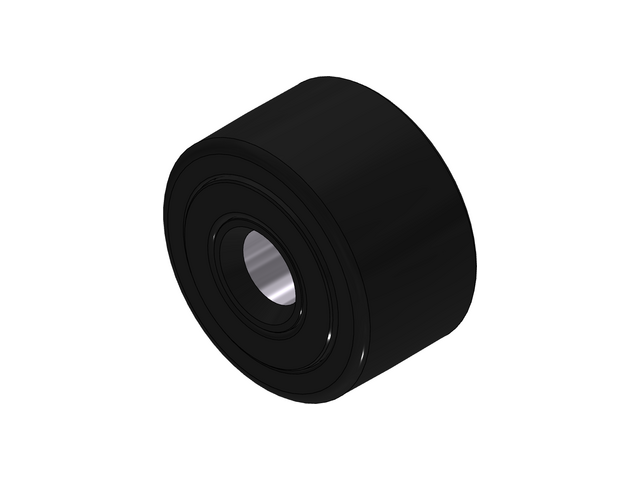

CNYR -Standard Neverlube Cam Yoke Roller Crowned

2D Drawings

CNYR-44 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

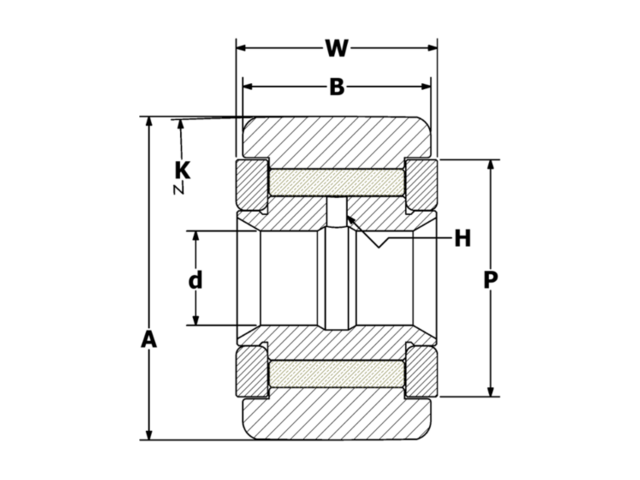

Specifications

ID CNYR-44
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 14
Bore Diameter d 0.375
Overall Width W 0.8125
Oil Hole Diameter H 3/32
Min. Boss Diameter P 49/64
Shaft Diameter (recommended) 0.3747
Load Factor 0.390

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed

Please call 616-842-8760 for price and availability
