CNBE-36-B

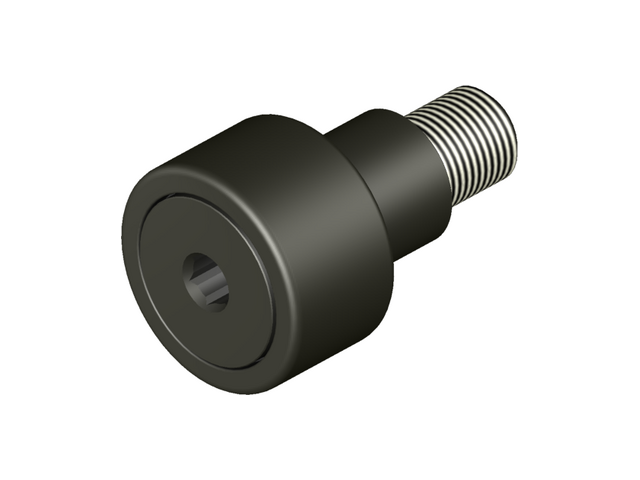

CNBE-B -Standard Hexed Eccentric Unsealed Cam Follower

2D Drawings

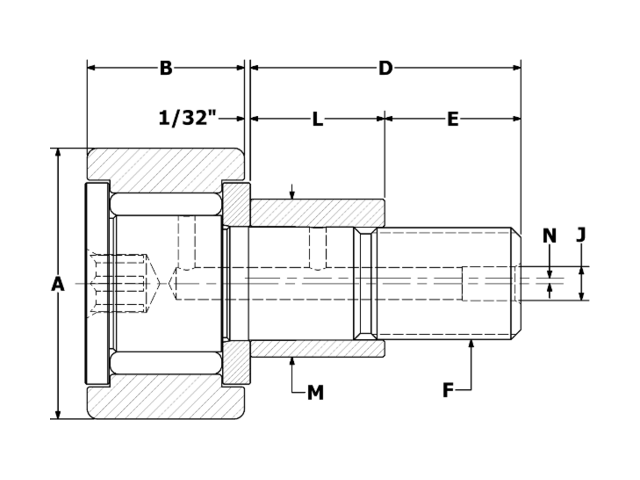

CNBE-36-B 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CNBE-36-B
Roller O.D. A 1.125
Roller Width B 0.625
Stud Length D 1.000
M.E.T. E 1/2
Thread Class 2A F 7/16-20
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.500
Bushing Diameter M 0.625
Eccentric offset N 0.030
Hex Size X 1/4
Min. Boss Diameter 41/64
Mounting Bore 0.628
Torque (in-lb) 125
Max Static Capacity (lbf) 3,060
Basic Dynamic Rating (lbf) 2,225
Limiting Speed (RPM) 3,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
