CCNBE-44-SB

CCNBE-SB -Standard Crowned Hexed Eccentric Sealed Cam Follower

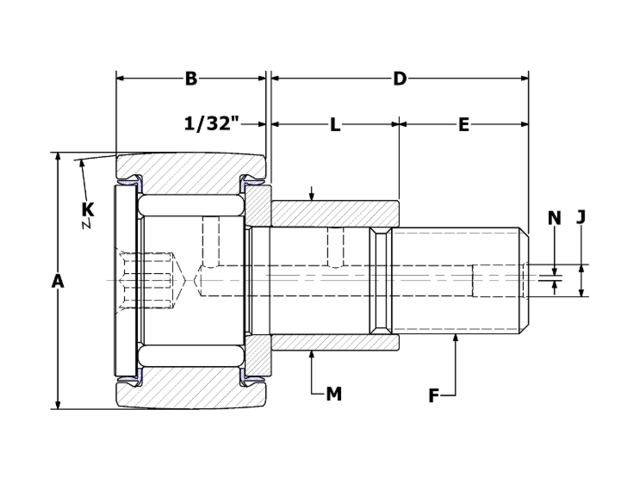

2D Drawings

CCNBE-44-SB 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CCNBE-44-SB
Roller O.D. A 1.375
Roller Width B 0.750
Crown Radius K 14
Stud Length D 1.250
M.E.T. E 5/8
Thread Class 2A F 1/2-20
Oil Hole Center G 5/16
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.625
Bushing Diameter M 0.687
Eccentric offset N 0.030
Hex Size X 1/4
Min. Boss Diameter 49/64
Mounting Bore 0.690
Torque (in-lb) 175
Max Static Capacity (lbf) 4,250
Basic Dynamic Rating (lbf) 3,930
Limiting Speed (RPM) 2,800

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
