CCNBE-28-SB

CCNBE-SB -Standard Crowned Hexed Eccentric Sealed Cam Follower

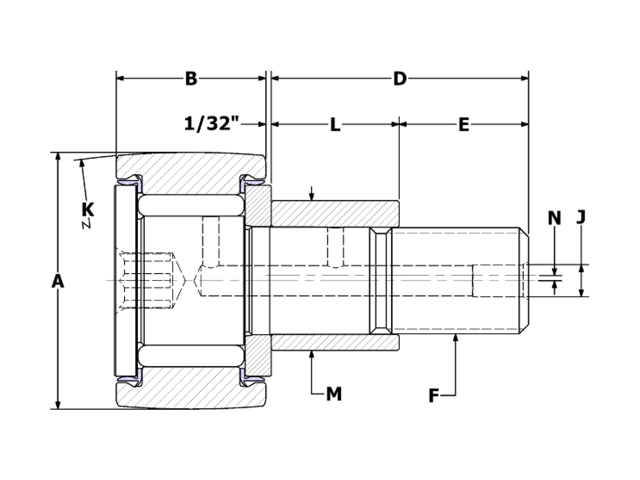

2D Drawings

CCNBE-28-SB 2D CAD Drawing

Need a Bearing for a Special Application?

Creating custom solutions or modifying a standard product is our SPECIALTY! Lots of bearing manufacturers can offer you a custom solution, but they can’t do it as quickly as CARTER! Our Engineering and Production is all under one roof, right here in the United States! We have the agility to create and produce a custom solution faster than our competitors, and at a lower cost!
Call 616.842.8760 and speak with one of our customer service reps for more information

Specifications

ID CCNBE-28-SB
Roller O.D. A 0.875
Roller Width B 0.500
Crown Radius K 10
Stud Length D 0.875
M.E.T. E 3/8
Thread Class 2A F 3/8-24
Oil Hole Center G 1/4
Oil Hole Diameter H 3/32
Lube Fitting Size J 3/16
Bushing Length L 0.500
Bushing Diameter M 0.500
Eccentric offset N 0.015
Hex Size X 3/16
Min. Boss Diameter 1/2
Mounting Bore 0.503
Torque (in-lb) 47.5
Max Static Capacity (lbf) 2,065
Basic Dynamic Rating (lbf) 1,660
Limiting Speed (RPM) 5,400

**Clamping torque is based on lubricated threads, if threads are dry, double the value listed
