3D CAD Downloads and Assembly Prints

Along with all of the dimensional data for our standard products, we have assembly prints and 3D models available in order to further aid your design process. If you know the bearing you are looking for, type our part number or a competitor's into the part search. If not, you can use our product search resource to browse our standard products and narrow down what you are looking for. If you are unable to find what you need, please give us a call. At Carter, we specialize in custom solutions!

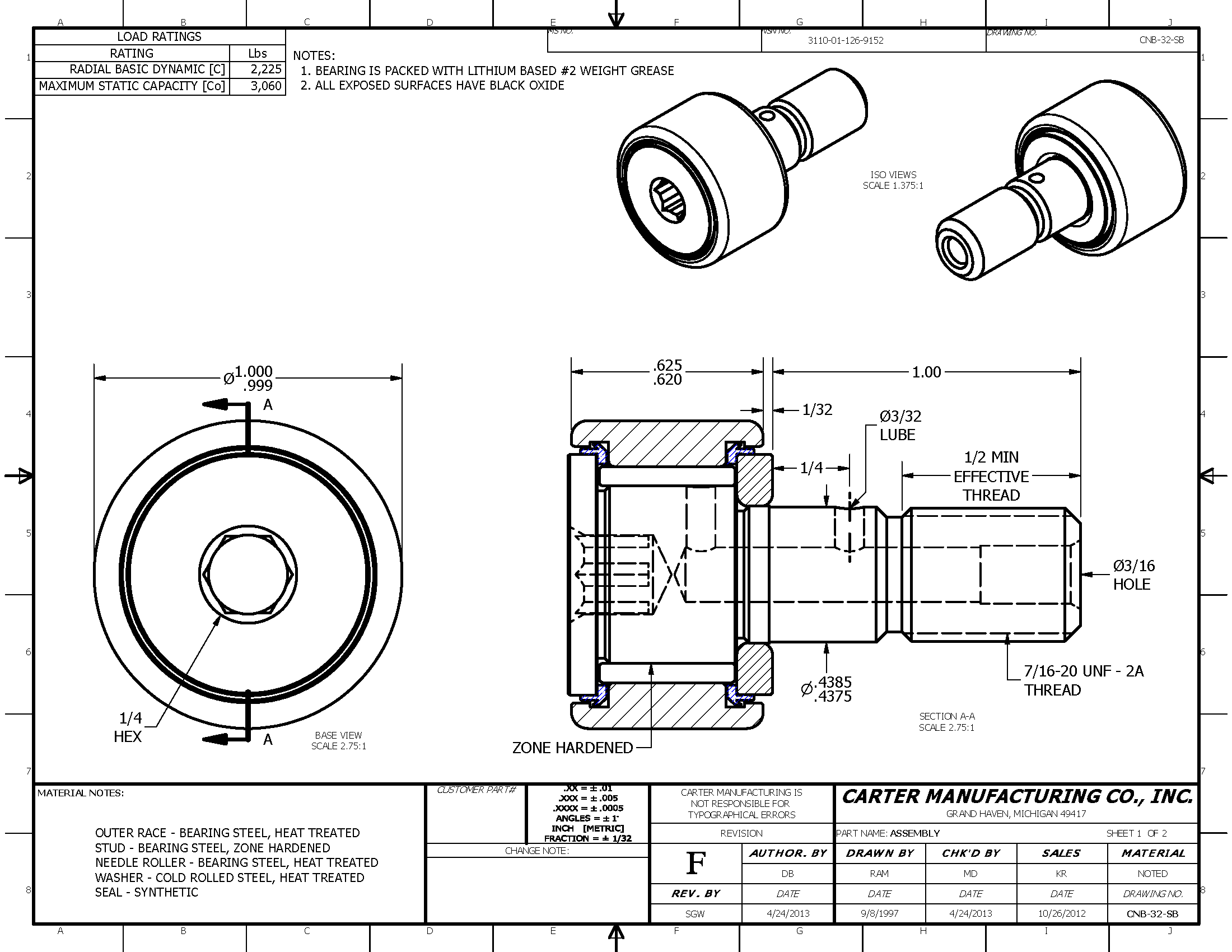

Download Preview



drawing
